Delft clay casting demonstration

In January 2020, John Huddleston gave a demonstration of how to cast silver using the delft clay method.  The club has the equipment for this.  John used a nutmeg as the item to reproduce and did two castings to allow more people to watch closely.

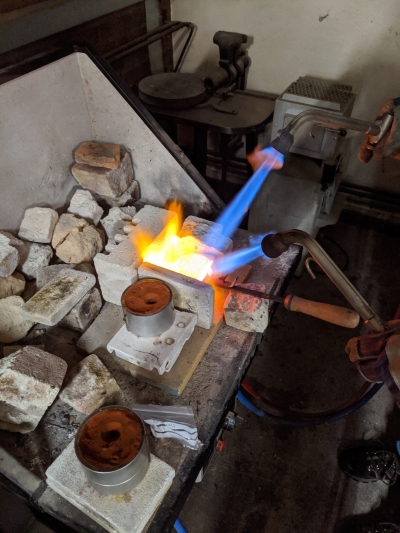

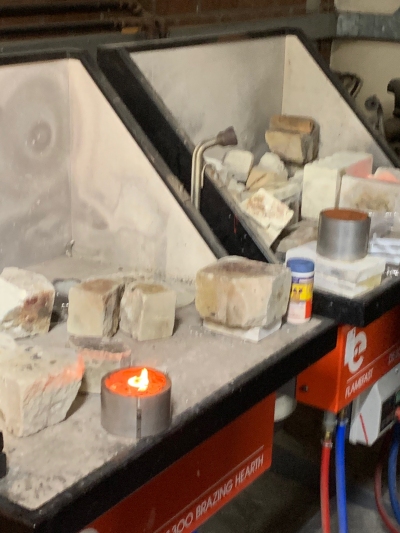

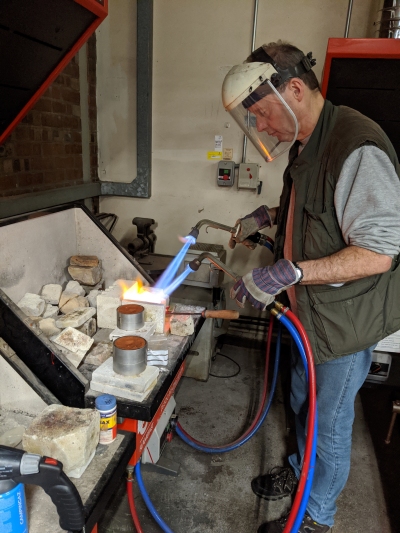

Starting the melt - using two torches to get the metal heated quickly. Two casts ready

Close up view

Just after the first pour

The first pour staring to cool

The audience at a safe distance

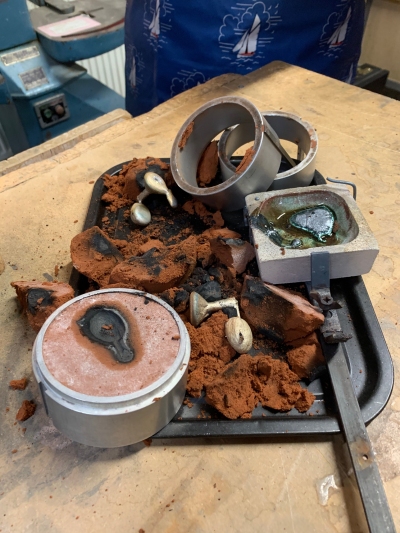

The two castings, the debris and the crucible and remaining silver

Starting to retrieve the clay that can be reused

The original nutmeg and the two castings

previous arrow
next arrow
With the first pour, John didn’t keep the torch on the crucible whilst pouring and the metal did cool a little so that the mould didn’t fill properly.  The second one was fine.  The first one will make a lighter pendant at 33g, whereas the full nut is 44g.
With thanks to Sharon Cairns and Lynne Ford for the action images.
